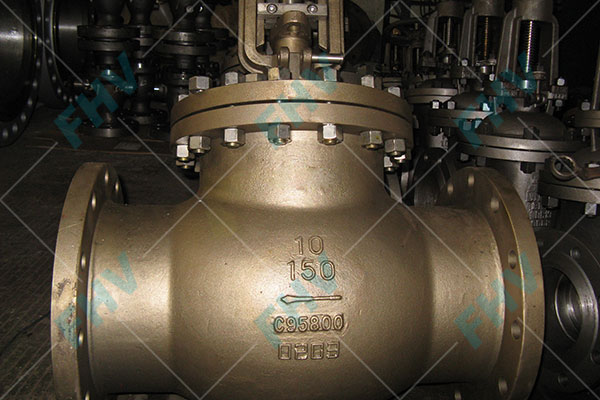

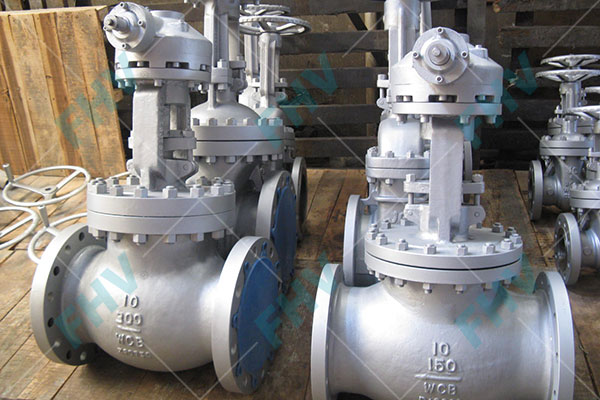

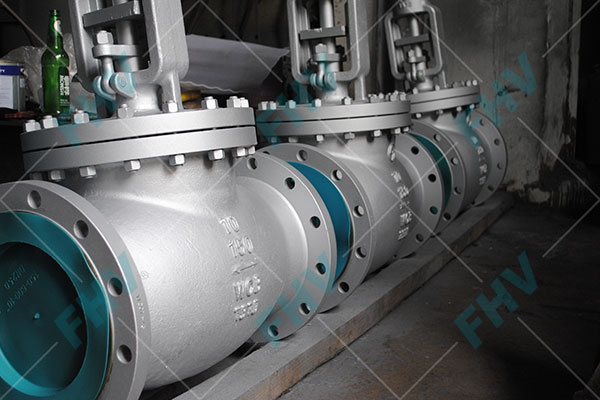

ANSI Globe Valve

Features

Meet design ANSI B16.5, B16.34, B16.10,B16.25 (for NPS≤24), MSS SP-44(for NPS>24), API-600
Straight and Y patteren body design
OS & Y,outside screw and yoke
BB,Bolted bonnet
Yoke intergral with bonnet
Rising stem and handwheel
Loose disc,choice of plug or ball
Renewable seat ring or Body seat ring
Impact handwheel for 10" & above
Horizontal servece
Flanged or buttwelding ends
Normal Size: 2"~20"
Pressure: 150LB~2500LB
Connection: Flanges,RTJ Flange,Butt Weld,Groove
Material:Carbon Steel, Forged Steel
Carbon Steel: ASTM A105, ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12, ASTM A217 C12A
Stainless Steel: ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CM8, ASTM A890 GR4A, ASTM A890
Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric  Actuator, Hydraulic Actuator.


Standards

Steel Globe Design: API 600 / BS1873
Steel Valves: ASME B16.34
Face to Face according to: ASME B16.10
Flanges Ends according to: ASME B16.5
Butt Welding Ends according to: ASME B16.25
Inspection and Testing according to: API 598 / API 6D
