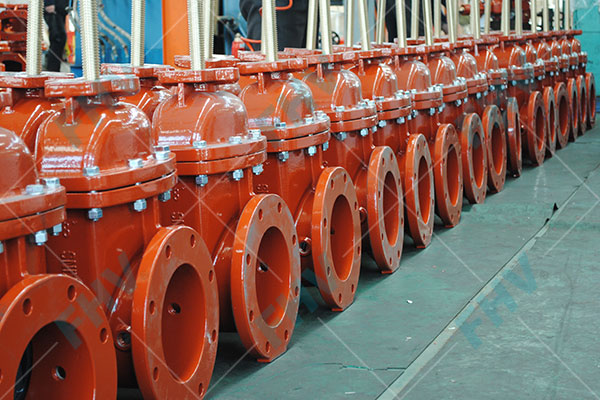

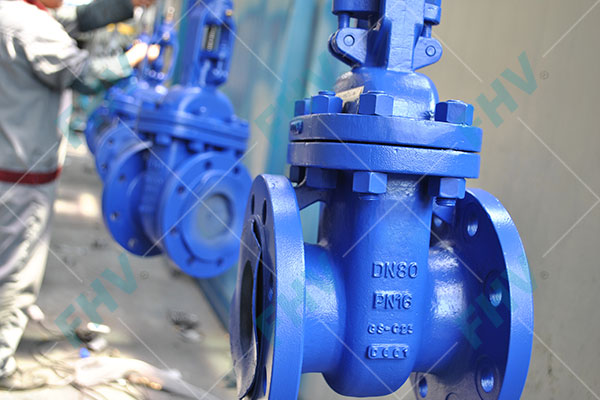

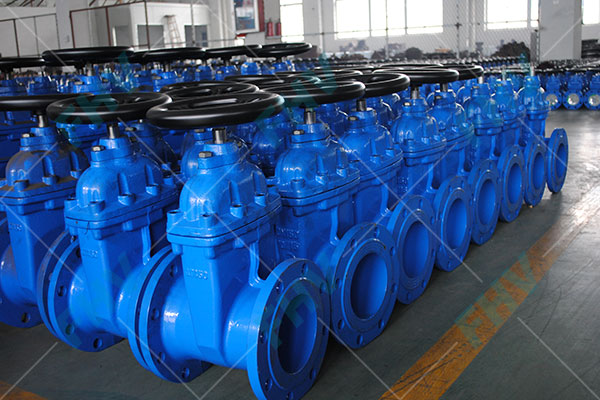

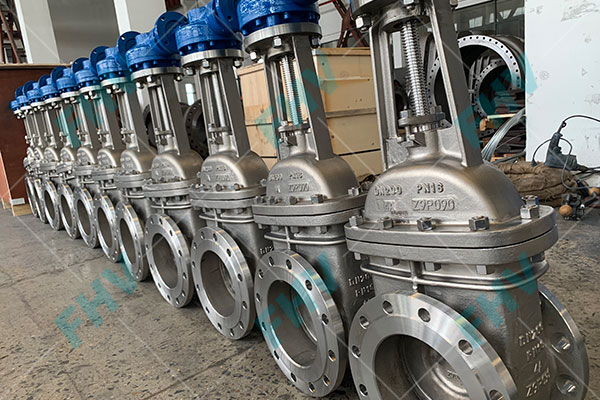

DIN Standard Gate Valve

DIN Standard Gate Valve is designed and manufactured according to the American standard API600 design standard. It is widely used in pipeline transmission medium. According to the form of the valve seat, the gate valve can be divided into wedge gate valve, flat gate valve, parallel double gate gate, uum The STL surfacing welding of the valve sealing surface of the system's carbon steel flange gate valve and the damper can increase the wear resistance and corrosion resistance. The product can have a longer service life. It can be installed with handwheels, bevel gears, pneumatic, electric, hydraulic actuators, etc.
DIN Standard Gate Valve are designed, constructed, and tested according to API and ASME/ANSI Standards. Other international standards including JIS、 BS and DIN are also available upon request.

1.DIN Standard Gate Valve Technical specifications:

  • Bolted Body, Full Port Construction
  • Fully Compliant to DIN 3352
  • Fully Compliant to DIN 3230
  • Flange Fully Compliant to DIN 2543-2545/ DIN2501
  • Submerged Packing System & Direct Mount Actuation

2.DIN Standard Gate Valve Product Specification:

  • Size:DN50~DN1200(2”~48”)
  • Pressure Rating: PN10-PN160
  • Material: A216 WCB/A352 LCB/A217 WC6/A217 WC9/A351 CF8/A351 CF3M/A351 CF3/A351 CF8M etc
  • Suitable Temperature: -196ºC~538ºC( Different temperature choose different materials).
  • Suitable Medium: Water, Steam, Oil and natural gas etc.

3.DIN Standard Gate Valve Product Feature:

  • CNC machine tool processing, high precision, good sealing .
  • With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
  • Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.
