Product Description

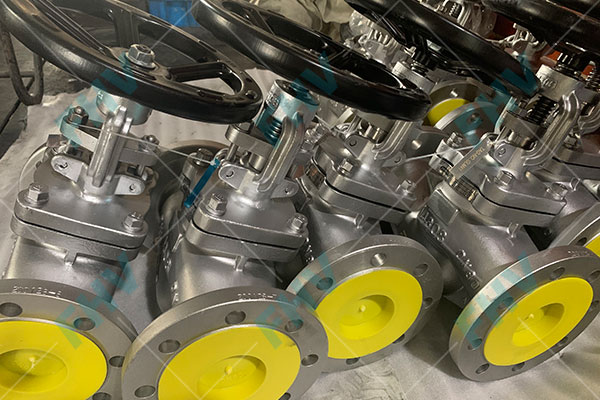

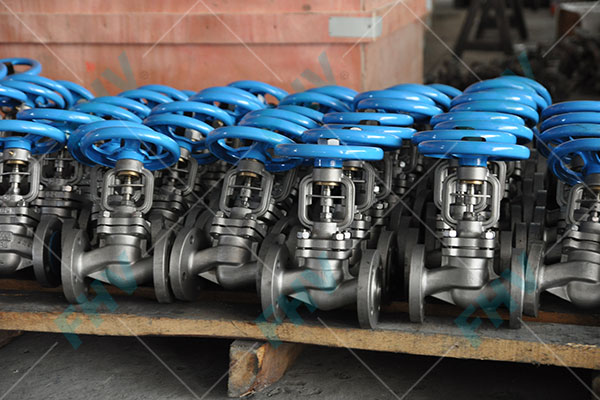

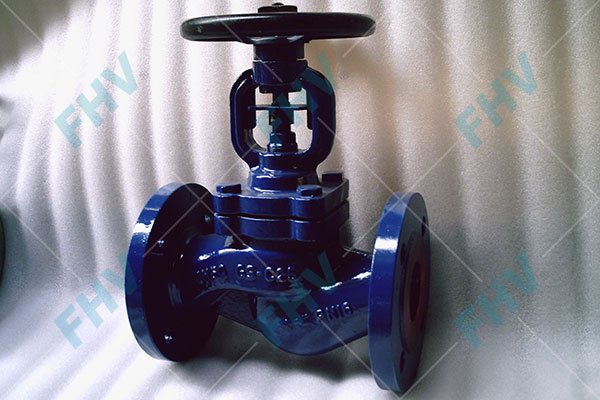

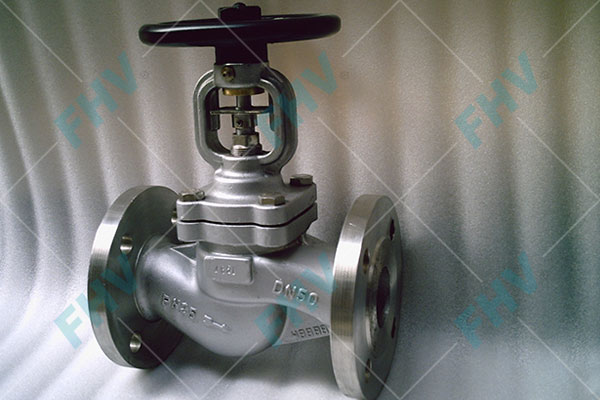

DIN Globe Valves are manufactured to the latest edition of EN 13709 and tested to EN12266-1.

Applicable Standards:

• Design EN 13709
• Face to face EN 558-1
• End flanges EN 1092-1
• Butt welding ends EN 12627
• Inspection and test EN 12266-1

Pressure Rating:

PN16, PN25, PN40

Temperature Range:

-50°C~650°C

Size Range:

DN15~DN400

Design Description:

• Straight pattern
• Outside Screw and York
• Bolted bonnet
• Seat in stellite or 13%Cr
• Available with gear operator
• Flange Ends
• Butt-welding Ends

---
